avCmListHuntGrp

Last Updated : Jul 12, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmListHuntGrp
enterprises.6889.2.73.8.1.16
Scalar

Description

The avCmListHuntGrp MIB Group uses the display capacity command to retrieve the HUNT GROUPS capacity information under the HUNT GROUPS, SPLITS, OR SKILLS section of SYSTEM CAPACITY form.

Releases Supported

6.3.100 and later

Polling Type

Configuration, Inventory, and Performance/Utilization

Polling Interval

No more than once every 20 minutes.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmListHuntGrp
SAT
display capacity
SYSTEM CAPACITY

Reference Document

A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmCapacityHuntGrpsSpSkUsed
.1
R
Integer32 (0..99999)
Groups/Splits/Skills
An object that contains the number of used Groups/Splits/Skills.
SYSTEM CAPACITY
avCmCapacityHuntGrpsSpSkAvail
.2
R
Integer32 (0..99999)
Groups/Splits/Skills
An object that contains the number of available Groups/Splits/Skills.
SYSTEM CAPACITY
avCmCapacityHuntGrpsSpSkSysLim
.3
R
Integer32 (0..99999)
Groups/Splits/Skills
An object that contains the system limit of Groups/Splits/Skills.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtUsed
.4
R
Integer32 (0..99999)
Administered Logical Agents
An object that contains the number of used administered logical agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtAvail
.5
R
Integer32 (0..99999)
Administered Logical Agents
An object that contains the number of available administered logical agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtSysLim
.6
R
Integer32 (0..99999)
Administered Logical Agents
An object that contains the system limit of administered logical agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtSkPrUsed
.7
R
Integer32 (0..99999)
Administered Logical Agent-Skill Pairs
An object that contains the number of used administered logical agent-skill pairs.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtSkPrAvail
.8
R
Integer32 (0..99999)
Administered Logical Agent-Skill Pairs
An object that contains the number of available administered logical agent-skill pairs.
SYSTEM CAPACITY
avCmCapacityHuntGrpsAdmLogAgtSkPrSysLim
.9
R
Integer32 (0..99999)
Administered Logical Agent-Skill Pairs
An object that contains the system limit of administered logical agent-skill pairs.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAcdAgtUsed
.10
R
Integer32 (0..99999)
Logged-In ACD Agents
An object that contains the number of used logged-in ACD agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAcdAgtUsed
.11
R
Integer32 (0..99999)
Logged-In ACD Agents
An object that contains the number of available logged-in ACD agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAcdAgtUsed
.12
R
Integer32 (0..99999)
Logged-In ACD Agents
An object that contains the system limit of logged-in ACD agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAdvocAgtUsed
.13
R
Integer32 (0..99999)
Logged-In Advocate Agents
An object that contains the number of used logged-in advocate agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAdvocAgtAvail
.14
R
Integer32 (0..99999)
Logged-In Advocate Agents
An object that contains the number of available logged-in advocate agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogAdvocAgtSysLim
.15
R
Integer32 (0..99999)
Logged-In Advocate Agents
An object that contains the system limit of logged-in advocate agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogIPSoftAgtUsed
.16
R
Integer32 (0..99999)
Logged-In IP Softphone Agents
An object that contains the number of used logged-in softphone agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogIPSoftAgtAvail
.17
R
Integer32 (0..99999)
Logged-In IP Softphone Agents
An object that contains the number of available logged-in softphone agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogIPSoftAgtSysLim
.18
R
Integer32 (0..99999)
Logged-In IP Softphone Agents
An object that contains the number of used logged-in SIP EAS agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogSipEasAgtUsed
.19
R
Integer32 (0..99999)
Logged-In SIP EAS Agents
An object that contains the number of used background BSR Poll VDNs.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogSipEasAgtAvail
.20
R
Integer32 (0..99999)
Logged-In SIP EAS Agents
An object that contains the number of available logged-in SIP EAS agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsLogSipEasAgtSysLim
.21
R
Integer32 (0..99999)
Logged-In SIP EAS Agents
An object that contains the number of available logged-in SIP EAS agents.
SYSTEM CAPACITY
avCmCapacityHuntGrpsGrpsMemPerSysUsed
.22
R
Integer32 (0..99999)
Group Members Per System
An object that contains the number of used vector comment steps.
SYSTEM CAPACITY
avCmCapacityHuntGrpsGrpsMemPerSysAvail
.23
R
Integer32 (0..99999)
Group Members Per System
An object that contains the number of used group members per system.
SYSTEM CAPACITY
avCmCapacityHuntGrpsGrpsMemPerSysSysLim
.24
R
Integer32 (0..99999)
Group Members Per System
An object that contains the system limit of group members per system.
SYSTEM CAPACITY
avCmCapacityHuntGrpsCmsMeasAcdMemUsed
.25
R
Integer32 (0..99999)
CMS Measured ACD Members
An object that contains the number of used CMS Measured ACD members.
SYSTEM CAPACITY
avCmCapacityHuntGrpsCmsMeasAcdMemAvail
.26
R
Integer32 (0..99999)
CMS Measured ACD Members
An object that contains the number of CMS Measured ACD members.
SYSTEM CAPACITY
avCmCapacityHuntGrpsCmsMeasAcdMemSysLim
.27
R
Integer32 (0..99999)
CMS Measured ACD Members
An object that contains the system limit of CMS Measured ACD members.
SYSTEM CAPACITY

Sample output of forms

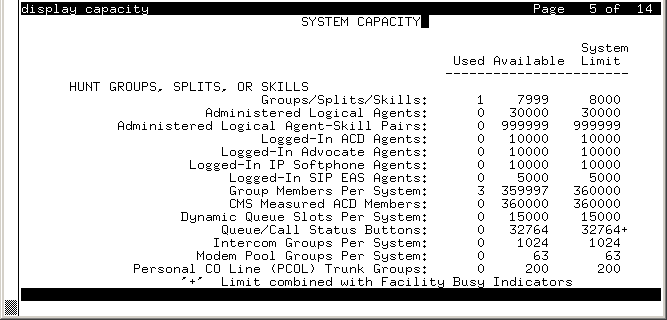

avCmCapacityHuntGrps - System Capacity

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityHuntGrps
avCmCapacityHuntGrpsSpSkUsed.0 = INTEGER: 1
avCmCapacityHuntGrpsSpSkAvail.0 = INTEGER: 7999
avCmCapacityHuntGrpsSpSkSysLim.0 = INTEGER: 8000
avCmCapacityHuntGrpsAdmLogAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsAdmLogAgtAvail.0 = INTEGER: 30000
avCmCapacityHuntGrpsAdmLogAgtSysLim.0 = INTEGER: 30000
avCmCapacityHuntGrpsAdmLogAgtSkPrUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsAdmLogAgtSkPrAvail.0 = INTEGER: 999999
avCmCapacityHuntGrpsAdmLogAgtSkPrSysLim.0 = INTEGER: 999999
avCmCapacityHuntGrpsLogAcdAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogAcdAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAcdAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAdvocAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogAdvocAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAdvocAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogIPSoftAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogIPSoftAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogIPSoftAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogSipEasAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogSipEasAgtAvail.0 = INTEGER: 5000
avCmCapacityHuntGrpsLogSipEasAgtSysLim.0 = INTEGER: 5000
