avCmMeasOccSum

Last Updated : Jul 12, 2021 |
Prolog information
Metadata
Keywords:
In Communication Manager Release 8.0,  occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmMeasOccSum MIB.
MIB group name
New OID name
New OID
Type
avCmMeasOccSum
avCmMeasOccSumOcc
enterprises.6889.2.73.8.1.32.1.1.16
Table

Description

The avCmMeasOccSum MIB Group uses the list measurements occupancy summary command to retrieve the summary of occupancy information.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour. However, the form is completely updated once every 24 hours.

Default Caching Interval

300 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasOccSum
SAT
list measurements occupancy summary
OCCUPANCY SUMMARY MEASUREMENTS

Reference Document

A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasOccSumTable
.1
n/a
SEQUENCE OF avCmMeasOccSumEntry
n/a
An object that contains a list of the avCmMeasOccSum entries
avCmMeasOccSumEntry
.1.1
n/a
avCmMeasOccSumEntry
n/a
A avCmMeasOccSum entry containing objects of the avCmMeasOccSum information sent by the switch.
avCmMeasOccSumIdx
.1.1.1
n/a
Integer32 (0..2300)
n/a
An object that uniquely identifies each Hour of data.
avCmMeasOccSumMeasHour
.1.1.2
R
Integer32 (0..2300)
Meas Hour
An object containing the Hour the measurement was taken.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumRunDate
.1.1.3
R
SnmpAdminString (SIZE (0..27))
Date
An object containing the Date the command was executed.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumPeakHour
.1.1.4
R
Integer32 (0..2300)
Peak Hour For Occupancy
An object that contains the Peak Hour for Occupancy.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumStatOcc
.1.1.5
R
Integer32 (0..100)
Occupancy
Object containing the processor utilized by static processes.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumTotCall
.1.1.9
R
Integer32 (0..100)
Total Calls
An object containing the total calls connected to the measurement hour.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumTandCall
.1.1.10
R
Integer32 (0..100)
Tandem Calls
An object containing trunk-to-trunk calls connected for the measurement hour.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumTotConn
.1.1.11
R
Integer32 (0..100)
Total Conn
An object containing the total calls connected for the measurement hour.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumIntcomAtt
.1.1.12
R
Integer32 (0..100)
Intcom Atmpts
An object containing the number of extension-to-extension calls on the same switch and partially completed calls for the measurement hour.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumIncAtt
.1.1.13
R
Integer32 (0..100)
Inc Atmpts
An object containing the number of incoming trunk seizures from public network facilities.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumOutAtt
.1.1.14
R
Integer32 (0..100)
Out Atmpts
An object containing the number of outgoing trunk seizures from public network facilities.
OCCUPANCY SUMMARY MEASUREMENTS
avCmMeasOccSumPnetAtt
.1.1.15
R
Integer32 (0..100)
Pnet Atmpts
An object containing the number of seizures from public network facilities.
OCCUPANCY SUMMARY MEASUREMENTS

Sample output of forms

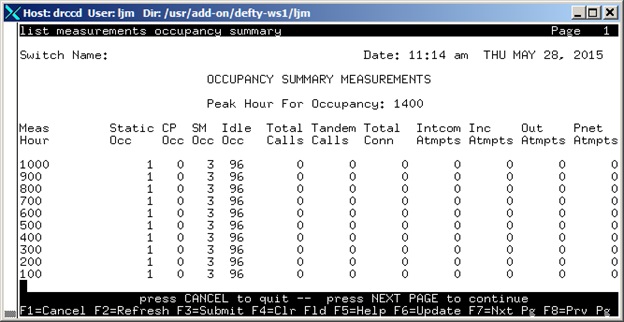

avCmMeasOccSum Group - Occupancy Summary Measurements

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt  avCmMeasOccSum
avCmMeasOccSumMeasHour.0 = INTEGER: 0
avCmMeasOccSumMeasHour.100 = INTEGER: 100
 :
 :
avCmMeasOccSumMeasHour.2300 = INTEGER: 2300
avCmMeasOccSumRunDate.0 = STRING: 11:29 am  THU MAY 28, 2015
avCmMeasOccSumRunDate.100 = STRING: 11:29 am  THU MAY 28, 2015
:
:
avCmMeasOccSumRunDate.2300 = STRING: 11:29 am  THU MAY 28, 2015
avCmMeasOccSumPeakHour.0 = INTEGER: 1400
avCmMeasOccSumPeakHour.100 = INTEGER: 1400
 :
 :
avCmMeasOccSumPeakHour.2300 = INTEGER: 1400
avCmMeasOccSumStatOcc.0 = INTEGER: 1
avCmMeasOccSumStatOcc.100 = INTEGER: 1
 :
 :
avCmMeasOccSumStatOcc.2300 = INTEGER: 1
avCmMeasOccSumCPOcc.0 = INTEGER: 0
avCmMeasOccSumCPOcc.100 = INTEGER: 0
 :
 :
avCmMeasOccSumCPOcc.200 = INTEGER: 0
avCmMeasOccSumCPOcc.300 = INTEGER: 0
avCmMeasOccSumCPOcc.2300 = INTEGER: 0
avCmMeasOccSumSMOcc.0 = INTEGER: 3
avCmMeasOccSumSMOcc.100 = INTEGER: 3
 :
 :
avCmMeasOccSumSMOcc.2300 = INTEGER: 3
avCmMeasOccSumIdleOcc.0 = INTEGER: 96
avCmMeasOccSumIdleOcc.100 = INTEGER: 96
 :
 :
avCmMeasOccSumIdleOcc.2300 = INTEGER: 96
avCmMeasOccSumTotCall.0 = INTEGER: 0
avCmMeasOccSumTotCall.100 = INTEGER: 0
avCmMeasOccSumTotCall.200 = INTEGER: 0
 :
 :
avCmMeasOccSumTotCall.2300 = INTEGER: 0
avCmMeasOccSumTandCall.0 = INTEGER: 0
avCmMeasOccSumTandCall.100 = INTEGER: 0
 :
 :
avCmMeasOccSumTandCall.2300 = INTEGER: 0
avCmMeasOccSumTotConn.0 = INTEGER: 0
avCmMeasOccSumTotConn.100 = INTEGER: 0
 :
 :
avCmMeasOccSumTotConn.2300 = INTEGER: 0
avCmMeasOccSumIntcomAtt.0 = INTEGER: 0
avCmMeasOccSumIntcomAtt.100 = INTEGER: 0
 :
 :
avCmMeasOccSumIntcomAtt.2300 = INTEGER: 0
avCmMeasOccSumIncAtt.0 = INTEGER: 0
avCmMeasOccSumIncAtt.100 = INTEGER: 0
 :
 :
avCmMeasOccSumIncAtt.2300 = INTEGER: 0
avCmMeasOccSumOutAtt.0 = INTEGER: 0
avCmMeasOccSumOutAtt.100 = INTEGER: 0
 :
 :
avCmMeasOccSumOutAtt.2300 = INTEGER: 0
avCmMeasOccSumPnetAtt.0 = INTEGER: 0
avCmMeasOccSumPnetAtt.100 = INTEGER: 0
 :
 :
avCmMeasOccSumPnetAtt.2300 = INTEGER: 0
