Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmSysParamCust
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmSysParamCust Group
|
enterprises.6889.2.73.8.1.103
|
Scalar
|
Description
The avCmSysParamCust MIB Group uses the display system-parameters customer-options command to retrieve customer options data indicating whether a small selection of features is activated.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Inventory and Configuration
Polling Interval
No more than once daily.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmSysParamCust Group
|
SAT
|
display system-parameters customer-options
|
OPTIONAL FEATURES
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmSysParamCustPlat
|
.1
|
R
|
SnmpAdminString (SIZE (0..6))
|
Platform
|
An object containing the platform of the server.
|
|
OPTIONAL FEATURES
|
|||||
|
avCmSysParamCustESS
|
.2
|
R
|
SnmpAdminString (SIZE (0..2))
|
Enterprise Survivable Server
|
An object containing whether the Enterprise Survivable Server feature is enabled.
|
|
OPTIONAL FEATURES
|
|||||
|
avCmSysParamCustLSP
|
.3
|
R
|
SnmpAdminString (SIZE (0..2))
|
Local Survivable Processor
|
An object containing whether the Local Survivable Processor feature is enabled.
|
|
OPTIONAL FEATURES
|
|||||
|
avCmSysParamCustTenantPart
|
.4
|
R
|
SnmpAdminString (SIZE (0..2))
|
Tenant Partitioning
|
An object containing whether the Tenant Partitioning feature is enabled.
|
|
OPTIONAL FEATURES
|
|||||
|
avCmSysParamCustPortNetSup
|
.5
|
R
|
SnmpAdminString (SIZE (0..2))
|
Port Network Support
|
An object containing whether the Port Network Support feature is enabled.
|
|
OPTIONAL FEATURES
|

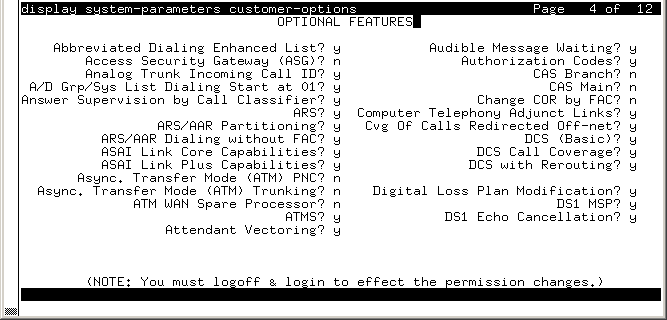

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmSysParamCust
avCmSysParamCustPlat.0 = STRING: 28
avCmSysParamCustESS.0 = STRING: n
avCmSysParamCustLSP.0 = STRING: n
avCmSysParamCustTenantPart.0 = STRING: y
avCmSysParamCustPortNetSup.0 = STRING: y
