avCmMeasIPVoStatHrPkLos

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIPVoStatHrPkLos
enterprises.6889.2.73.8.1.65
Table

Description

The avCmMeasIPVoStatHrPkLos MIB group displays the hourly packet loss during calls for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIPVoStatHrPkLos
SAT
list measurements ip voice-stats hourly pktloss
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIPVoStatHrPkLosTable
.1
n/a
SEQUENCE OF avCmMeasIPVoStatHrPkLosEntry
n/a
An object containing the avCmMeasIPVoStatHrPkLos entries.
avCmMeasIPVoStatHrPkLosEntry
.1.1
n/a
avCmMeasIPVoStatHrPkLosEntry
n/a
An object containing the avCmMeasIPVoStatHrPkLos entry with the information that the switch sent.
avCmMeasIPVoStatHrPkLosRegIdx
.1.1.1
n/a
Integer32 (0..2000)
n/a
An index in the network region.
avCmMeasIPVoStatHrPkLosHourIdx
.1.1.2
n/a
Integer32 (0..2300)
n/a
An index that contains the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIPVoStatHrPkLosIdx
.1.1.3
n/a
Integer32 (0..9999)
n/a
A unique index for the packet loss voice statistics.
avCmMeasIPVoStatHrPkLosRegion
.1.1.4
R
Integer32 (0..2000)
List Command: Region
An object containing the network region.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosMeasHour
.1.1.5
R
Integer32 (0..2300)
Measurement Hour
An object that containing the measurement hour.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosBoardLoc
.1.1.7
R
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosCallingNum
.1.1.8
R
SnmpAdminString (SIZE (0..17))
Calling Number
An object containing the calling number.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosCalledNum
.1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosCodec
.1.1.10
R
SnmpAdminString (SIZE (0..8))
Codec
An object containing the codec.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosPktSize
.1.1.11
R
Integer32 (0..999)
Pkt Size
An object containing the network region where the media processor is located.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosDstReg
.1.1.12
R
Integer32 (0..5)
Dst Reg
An object containing the timestamp when the threshold is exceeded in the call. The timestamp displays minutes and seconds in the MM-SS format.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosAvg
.1.1.13
R
Integer32 (0..6)
RT-Delay Avg
An object containing the UDP port assigned to the media process for the call.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosPeak
.1.1.14
R
Integer32 (0..999)
RT-Delay Peak
An object containing the packet size of each data stream of the call in milliseconds.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosTimeCall
.1.1.15
R
Integer32 (0..9999)
Time of Call
An object containing the number of total packets lost for the call.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosDataCall
.1.1.16
R
SnmpAdminString (SIZE (0..3))
Data Call
An object containing the indication of data calls.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosEncrypc
.1.1.17
R
SnmpAdminString (SIZE (0..2))
Encryp
An object containing the peak packet loss in the call. The packet loss rate is calculated at 10-second intervals.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT
avCmMeasIPVoStatHrPkLosEC
.1.1.18
R
SnmpAdminString (SIZE (0..41))
FEAddr
An object containing the far-end IP address.
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT

Sample output of forms

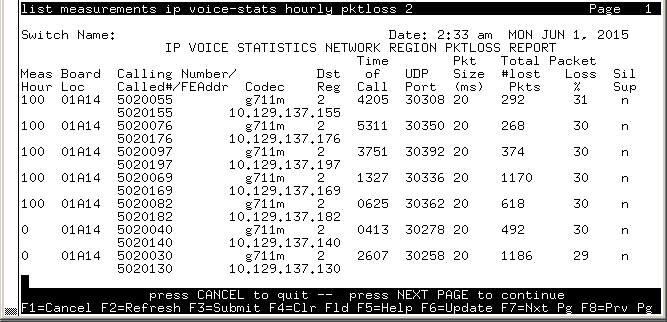

avCmMeasIPVoStatHrPkLos - IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrPkLos
avCmMeasIpVoStatHrPkLosRegion.1.0.6 = INTEGER: 1
avCmMeasIpVoStatHrPkLosRegion.1.0.7 = INTEGER: 1
:
:
avCmMeasIpVoStatHrPkLosRegion.2.2300.15 = INTEGER: 2
avCmMeasIpVoStatHrPkLosMeasHour.1.0.6 = INTEGER: 0
avCmMeasIpVoStatHrPkLosMeasHour.1.0.7 = INTEGER: 0
:
:
avCmMeasIpVoStatHrPkLosMeasHour.2.2300.15 = INTEGER: 2300
avCmMeasIpVoStatHrPkLosRunTime.1.0.6 = STRING: 2:30 am MON JUN 1, 2015
avCmMeasIpVoStatHrPkLosRunTime.1.0.7 = STRING: 2:30 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatHrPkLosRunTime.2.2300.15 = STRING: 2:30 am MON JUN 1, 2015
avCmMeasIpVoStatHrPkLosBoardLoc.1.0.6 = STRING: 01A06
avCmMeasIpVoStatHrPkLosBoardLoc.1.0.7 = STRING: 01A06
:
:
avCmMeasIpVoStatHrPkLosBoardLoc.2.2300.15 = STRING: 01A14
avCmMeasIpVoStatHrPkLosCallingNum.1.0.6 = STRING: 5020084
avCmMeasIpVoStatHrPkLosCallingNum.1.0.7 = STRING: 5020001
:
:
avCmMeasIpVoStatHrPkLosCallingNum.2.2300.15 = STRING: 5020003
avCmMeasIpVoStatHrPkLosCalledNum.1.0.6 = STRING: 5020184
avCmMeasIpVoStatHrPkLosCalledNum.1.0.7 = STRING: 5020101
:
:
avCmMeasIpVoStatHrPkLosCalledNum.2.2300.15 = STRING: 5020103
avCmMeasIpVoStatHrPkLosCodec.1.0.6 = STRING: g711m
avCmMeasIpVoStatHrPkLosCodec.1.0.7 = STRING: g711m
:
:
avCmMeasIpVoStatHrPkLosCodec.2.2300.15 = STRING: g711m
avCmMeasIpVoStatHrPkLosDstReg.1.0.6 = INTEGER: 3
avCmMeasIpVoStatHrPkLosDstReg.1.0.7 = INTEGER: 3
:
:
avCmMeasIpVoStatHrPkLosDstReg.2.2300.15 = INTEGER: 2
avCmMeasIpVoStatHrPkLosTimeCall.1.0.6 = STRING: 2633
avCmMeasIpVoStatHrPkLosTimeCall.1.0.7 = STRING: 4215
:
:
avCmMeasIpVoStatHrPkLosTimeCall.2.2300.15 = STRING: 0101
avCmMeasIpVoStatHrPkLosUDPPort.1.0.6 = STRING: 30166
avCmMeasIpVoStatHrPkLosUDPPort.1.0.7 = STRING: 30000
:
:
avCmMeasIpVoStatHrPkLosUDPPort.2.2300.15 = STRING: 30204
avCmMeasIpVoStatHrPkLosPktSize.1.0.6 = INTEGER: 20
avCmMeasIpVoStatHrPkLosPktSize.1.0.7 = INTEGER: 20
:
:
avCmMeasIpVoStatHrPkLosPktSize.2.2300.15 = INTEGER: 20
avCmMeasIpVoStatHrPkLosTotnumLosPkts.1.0.6 = INTEGER: 379
avCmMeasIpVoStatHrPkLosTotnumLosPkts.1.0.7 = INTEGER: 1258
:
:
avCmMeasIpVoStatHrPkLosTotnumLosPkts.2.2300.15 = INTEGER: 388
avCmMeasIpVoStatHrPkLosPktLossPerc.1.0.6 = STRING: 30
avCmMeasIpVoStatHrPkLosPktLossPerc.1.0.7 = STRING: 29
:
:
avCmMeasIpVoStatHrPkLosPktLossPerc.2.2300.15 = STRING: 29
avCmMeasIpVoStatHrPkLosSilSup.1.0.6 = STRING: n
avCmMeasIpVoStatHrPkLosSilSup.1.0.7 = STRING: n
:
:
avCmMeasIpVoStatHrPkLosSilSup.2.2300.15 = STRING: n
avCmMeasIpVoStatHrPkLosFEAddr.1.0.6 = STRING: 10.129.137.84
avCmMeasIpVoStatHrPkLosFEAddr.1.0.7 = STRING: 10.129.137.1
:
:
avCmMeasIpVoStatHrPkLosFEAddr.2.2300.15 = STRING: 10.129.137.103
