Avaya Aura® Communication Manager Alarms, Events, and Logs Reference
BRI-SET, Various Adjuncts
MO name in log |
Alarm level |
Initial command to run |
Full name of MO |
|---|---|---|---|
BRI-SET |
WRN 1 |
test station extension l |
ISDN-BRI Set |
BRI-DAT |
WRN 1 |
test data-module extension l |
ISDN-BRI Data Module |
ASAI-ADJ |
MAJ 1 |
test station extension test data-module extension |
ASAI-Adjunct |
WRN 2 |
test data-module extension |
||
ATT-ADJ |
MAJ 1 WRN 2 |
test station extension |
Avaya-Adjunct |
LGATE-AJ |
MAJ 1 WRN 2 |
test station extension |
Ethernet ASAI-Adjunct |
ATTE-AJ |
MAJ 1 WRN 2 |
test station extension |
Ethernet Avaya-Adjunct |
Warning:
Information for isolating and resolving packet bus faults is included in Isolating and repairing packet-bus faults section in Maintenance Procedures for Avaya Aura® Communication Manager, Branch Gateways and Servers. The Troubleshooting Packet Bus Problems flowchart, along with the other information presented in the chapter, can help resolve problems that involve more than a single station.
Warning:
If a significant packet bus failure occurs, errors and alarms may not be logged as expected for BRI-PORT/ABRI-POR/ATT-PORT/ LGATE-PT/ ATTE-PT. Conditions under which this occurs are detailed in the Isolating and repairing packet-bus faults in Maintenance Procedures for Avaya Aura® Communication Manager, Branch Gateways and Servers.
ISDN-BRI endpoints come in a number of configurations. Every endpoint requires the D-Channel to convey signaling information to the switch. A voice-only set requires only one B-Channel. A voice and data-capable set requires both B-Channels. One of them is for voice and the other one is for data. Only a single ASAI or Avaya adjunct may be connected to an ISDN-BRI port. Multiple adjuncts per line are not supported.

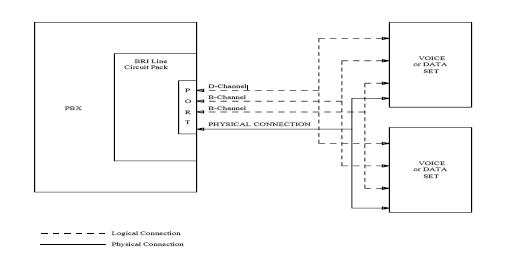

The figure illustrates the physical connection between an ISDN-BRI media module and a voice or voice/data set. The connection is represented by a solid line. Each physical connection allows for two B-Channels, as stated above, plus one D-Channel.
This section contains the ISDN-BRI Set, ASAI Adjunct and Avaya Adjunct Maintenance documentation. Some of the results of maintenance testing of the ISDN-BRI Set or the ASAI and Avaya Adjunct may be affected by the health of the ISDN-BRI media module and port. These interactions should be kept in mind when investigating the cause of ISDN-BRI Set problems.
1
The alarm level for ASAI and Avaya adjuncts may be administered using set options. The alarm level can be set independently for on- and off-board alarms to WARNING, MINOR, or MAJOR for every ASAI and Avaya adjunct in the system.
2
Alarming for an ASAI and Avaya adjuncts is disabled if the adjunct asks the switch to suspend maintenance. When this occurs, an error and a WARNING alarm are logged against the endpoint. Busying out and releasing the ASAI station or ADDLE station will clear the alarm.
