Adding Session Manager regular expressions

Last Updated : Feb 07, 2019 |
Prolog information
Metadata
Keywords:
  1. Log in to the System Manager as an administrator.
  2. Navigate to ElementsRouting, and then click Regular Expressions.
  3. Click New, and enter the required data.
    1. The pattern specified must match the Avaya Breeze platform Security Module FQDN followed by dot-star. For example, ps-node106-sm100\.domain1\.com.*.
    2. The rank order can be 0 or some other appropriate number.
    3. Deny should be cleared.
    4. In Routing Policy, click Add and select the policy created in the previous procedure for this Presence Services node.
  4. Click Commit to create the regular expression.
    ADDITIONAL INFORMATION:
    Repeat this procedure for each node in the Presence Services cluster.

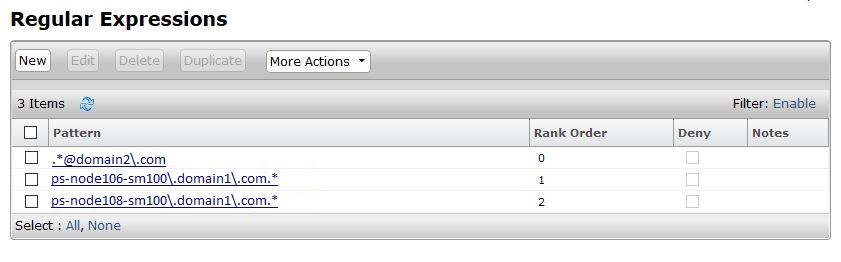

    The following screenshot shows the existing regular expression for the Avaya Session Border Controller for Enterprise and two new regular expressions for multi-user chat support.
