  1. On the System Manager web console, navigate to ElementsAvaya Breeze®Configuration.
  2. Click Attributes.
  3. On the Service Clusters tab, in the Cluster field, click the Presence Services cluster.
  4. In the Service field, click the Presence Services service.
  5. On the Attributes Configuration page, navigate to the Microsoft Federation group.
  6. In the Microsoft Federation Enabled field, in Effective Value, click True.
    ADDITIONAL INFORMATION:
    The default value is False.
  7. In the Internal Microsoft Domain List field, in Effective Value, type the Microsoft domain name.
    ADDITIONAL INFORMATION:
    Use a comma as a separator to specify multiple Microsoft domain names.
  8. To override the default value, select the Override Default check box.
  9. Enable or disable multimedia attachment support.
    ADDITIONAL INFORMATION:
    This attribute must be enabled to allow Avaya Workplace Client users to share multimedia attachments with federated Microsoft users. Multimedia attachments are sent as web links to the federated conversation participants.
    Note:
    The web link is temporary and expires after 10 minutes. The attachment file will not be accessible by using the link after 10 minutes. The default value is False so that the attachment support is disabled by default when Microsoft federation is enabled. To override the default value, select the Override Default check box.
    Important:
    Attachments sent from Microsoft clients to Presence Services clients are not supported.
  10. Click Commit.
    ADDITIONAL INFORMATION:

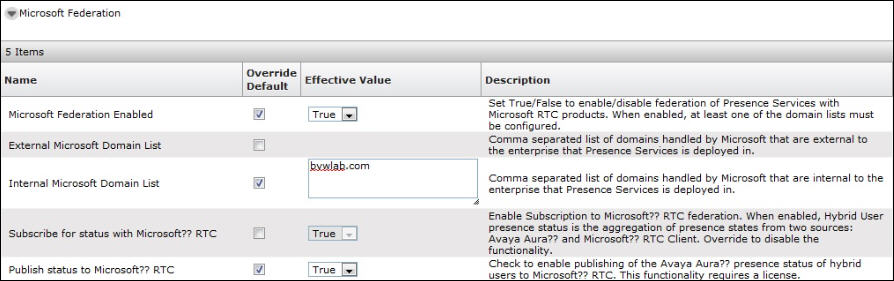

    The following screen shot shows Microsoft Federation Attribute configuration for Microsoft domain bvwlab.com:
