Configuring the Routing Profiles

Last Updated : Nov 22, 2018 |
Prolog information
Metadata
Keywords:
  1. Log in to the Avaya Session Border Controller for Enterprise server as the administrator.
  2. Click Global ProfilesRouting.
  3. Click Add and assign a name to the Routing Profiles.
    For example: toLab3sm and toMSEdge.

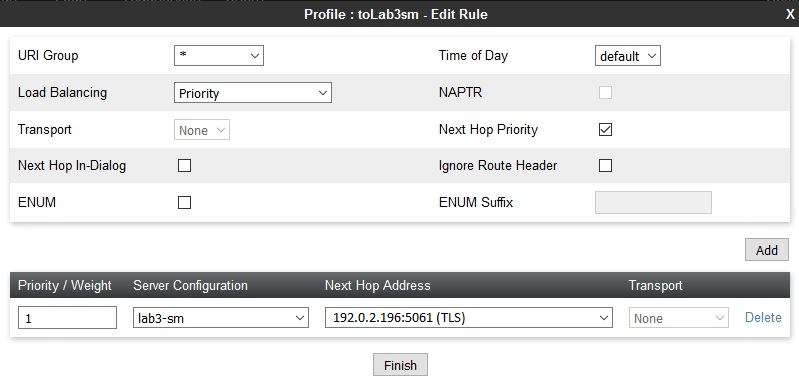

  4. For the toLab3sm profile use the default settings, adding the lab3-sm Server Configuration as the Next Hop Address as shown in the following figure:
    ADDITIONAL INFORMATION: Edit profile rule dialog box for toLab3sm.

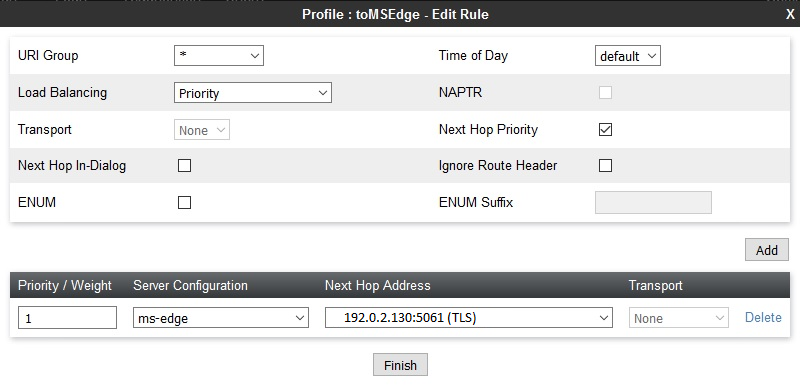

  5. For the toMSEdge profile use the default settings, adding the ms-edge Server Configuration as the Next Hop Address as shown in the following figure:
    ADDITIONAL INFORMATION: Edit profile rule dialog box for toMSEdge.
