Remote Call Coverage Table

Last Updated : Jan 09, 2013 |

Provides automatic redirection of certain calls to alternate non-local answering positions in a coverage path.

Non-local numbers can be any ARS or AAR number, any number on the public network, any international number, or a UDP/DCS extension up to 16 digits or blank, which includes any ARS/AAR facility access code, any trunk dial access code (TAC), long distance dialing code, or international dial code.

Example command: change coverage remote n, where n is the remote coverage number.

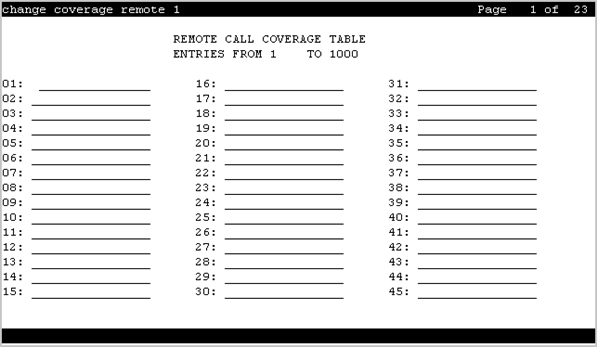

The screenshot of the Remote Call Coverage table

01–1000

The identifier for the destination coverage point. Accepts up to 16 digits. Two places are used for L, D, %, and ,.

Valid Entry

Usage

*

DTMF digit asterisk

#

DTMF digit pound

L

Uses a coverage point only when in Survivable Remote or Survivable Core Server mode

D

Represents the called extension digits

%

Remaining digits are for end-to end signaling

,

Pauses for 1.5 seconds

blank

Not administered
