Avaya Aura® Communication Manager Screen Reference

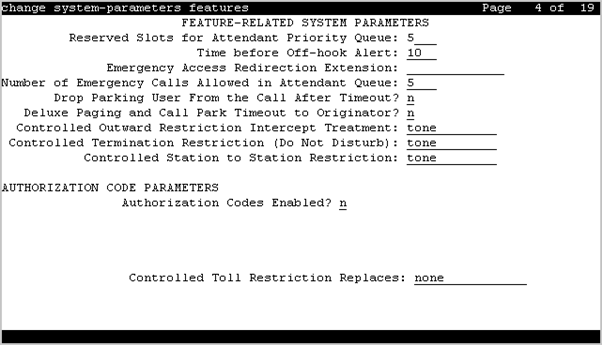

Feature-related system parameters: page 4
Call Pickup on Intercom Calls
Provides or prohibits the system-wide use of Call Pickup or Directed Call Pickup features on intercom calls.
Controlled Outward Restriction Intercept Treatment
The type of intercept treatment the caller receives when the call is outward restricted.
Valid Entry |
Usage |
|---|---|
announcement |
Provides a recorded announcement to calls that cannot be completed as dialed. The calling party receives indication that the call is receiving Intercept Treatment. Requires an extension number for the announcement in the associated field.
Note:
If you enter a shortened extension of the multilocation dial plan, the system does not perform certain administration and validation tasks. Therefore, the system might not display the resultant warnings or submittal denials. |
attendant |
Allows attendants to provide information and assistance to outgoing calls that cannot be completed as dialed or that are transferred to incomplete or restricted stations. |
extension |
Routes to an extension. Requires an extension number for the extension in an associated field. Cannot be a VDN extension. |
tone |
Provides a siren-type tone to internal calls that cannot be completed as dialed. |
Controlled Station-to-Station Restriction
The type of intercept treatment the caller receives when the call is placed to a restricted telephone.
Valid Entry |
Usage |
|---|---|
announcement |
Provides an announcement. Requires entry of the announcement extension. |
attendant |
Intercepted calls are redirected to the attendant. |
extension |
Routes the call to an alternate extension. Requires entry of the station or individual attendant. This cannot be a VDN extension. |
tone |
Intercepted calls receive intercept (siren) tone. |
Controlled Termination Restriction (Do Not Disturb)
The type of intercept treatment the caller receives when the call is placed to a termination restricted telephone.
Valid Entry |
Usage |
|---|---|
announcement |
Redirects intercepted calls to an announcement. Requires an associated extension number. |
attendant |
Redirects intercepted calls to the attendant. |
coverage |
Redirects intercepted calls to coverage. |
extension |
Redirects intercepted calls to an extension. Requires an associated extension number. Cannot be a VDN extension. |
tone |
Provides a siren-type tone to calls that cannot be completed as dialed. |
Deluxe Paging and Call Park Timeout to Originator
Enables or disables the Call Park feature so that a user can retrieve a call that is on hold from any other telephone within the system. For example, a user can answer a call at one extension, put the call on hold, and then retrieve the call at another extension. Or the user can answer a call at any telephone after an attendant or another user pages the user. Paged calls that are to be parked require separate activation of the Call Park feature.
Valid Entry |
Usage |
|---|---|
y |
The system redirects a parked call to the user who parked the call. |
n |
The system redirects a parked call to the attendant. |
Drop Parking User From the Call After Timeout
Valid Entry |
Usage |
|---|---|
y |
Drops the parking user from the call automatically after the timeout. |
n |
Does not drop the parking user from the call automatically after the timeout. |
Emergency Access Redirection Extension
The assigned extension number or Vector Directory Number (VDN) where emergency queue overflow redirects.
Extended Group Call Pickup
Enables call pickup groups to answer calls directed to another call pickup group.
Valid Entry |
Usage |
|---|---|
flexible |
Flexible feature version supporting a one-to-n (pickup group-to-extended pickup group) mapping. |
simple |
Simple feature version with a one-to-one pickup group-to-extended pickup group mapping supported. |
none |
Extended group call pickup is ignored. |
Number of Emergency Calls Allowed in Attendant Queue
Valid Entry |
Usage |
|---|---|
0 to 75 |
The number of emergency calls allowed in the attendant queue before additional calls are routed to the backup extension. |
Reserved Slots for Attendant Priority Queue
Valid Entry |
Usage |
|---|---|
2 to 342 |
The number of calls that can go in to the emergency queue. |
Time Before Off-Hook Alert
Valid Entry |
Usage |
|---|---|
1 to 3000 |
The time in seconds that a telephone with an Off-Hook Alert Class of Service can remain off-hook (after intercept tone has started) before an emergency call is sent to the attendant. |
AUTHORIZATION CODE PARAMETERS
Attendant Time Out Flag
Applies only to remote users or incoming calls over trunks requiring an authorization code. Available only if authorization codes are enabled for the system.
Valid Entry |
Usage |
|---|---|
y |
A call is routed to the attendant if the caller does not dial an authorization code within 10 seconds or dials an invalid authorization code. |
n |
The caller receives intercept tone. |
Authorization Code Cancellation Symbol
The symbol a caller must dial to cancel the 10-second wait period during which the user can enter an authorization code. Available only if authorization codes are enabled for the system.
Valid Entry |
Usage |
|---|---|
(#) |
The main and tandem servers or switches are both of the same type. |
(1) |
An Avaya server or switch is part of the complex or network. |
Authorization Code Length
Available only if authorization codes are enabled for the system.
Security alert:
Enhance system security by using the maximum length for your authorization code.
Valid Entry |
Usage |
|---|---|
4 to 13 digits |
The required length of the authorization code. All administered authorization codes must be this length. |
Authorization Codes Enabled
Enables or disables authorization codes on a system-wide basis.
Available only if authorization codes are enabled.
Security alert:
To maintain system security, use authorization codes.
Controlled Toll Restriction Intercept Treatment
Applies an intercept treatment to a toll call during the call processing. Available only if the Controlled Toll Restriction feature is activated.
Valid Entry |
Usage |
|---|---|
announcement |
Intercepted calls are redirected to an announcement. Requires an assigned announcement extension. |
attendant |
Intercepted calls are redirected to the attendant. |
extension |
Intercepted calls are redirected to an extension. Requires an extension assigned to a station or individual attendant. |
tone |
Intercepted calls receive intercept (siren) tone. |
Controlled Toll Restriction Replaces
Activates the Controlled Toll Restriction feature for the customer to use additional types of calling restrictions on guest room telephones.
Valid Entry |
Usage |
|---|---|
outward |
Guests cannot place calls to the public network. |
station-station |
Guests cannot place or receive calls between guest rooms or administrative staff voice terminals. |
termination |
Guests cannot receive any calls. |
total |
Guests cannot place or receive any calls. |
toll |
Guests cannot place toll calls, but can place local free calls. |
Display Authorization Code
Enables or disables displaying authorization code digits on the set during dialing. Applies only to DCP, not to BRI or hybrid sets.
Security alert:
To enhance system security, do not display authorization code digits during dialing.
