Avaya Aura® Communication Manager Screen Reference

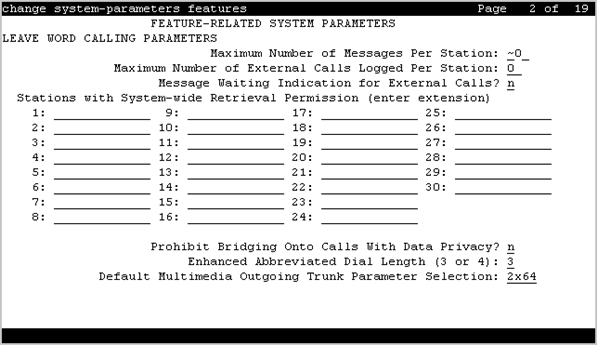

Feature-related system parameters: page 2
LEAVE WORD CALLING PARAMETERS
Default Multimedia Outgoing Trunk Parameter Selection
Valid Entry |
Usage |
|---|---|
2x56 2x64 |
Sets the default parameter for bandwidth and bearer for all video calls. |
Enhanced Abbreviated Dial Length (3 or 4)
Enhanced abbreviated dial lists are for users who need to store a vast quantity of speed-dialed numbers. The administrator might not be able to use all entry slots because of system capacity constraints.
Valid Entry |
Usage |
|---|---|
3 |
Administrator can use 1000 enhanced list entries. |
4 |
Administrator can use 10,000 entries available. |
Maximum Number of External Calls Logged Per Station
When an external call is unanswered, the server running Communication Manager keeps a record of up to 15 calls, provided information on the caller identification is available, and the telephone message lamp lights. The telephone set displays the names and numbers of unsuccessful callers.
Valid Entry |
Usage |
|---|---|
0 to 15 |
The maximum number of calls that can be logged for each user. The assigned number cannot be larger than the entry in Maximum Number of Messages Per Station. |
Maximum Number of Messages Per Station
Valid Entry |
Usage |
|---|---|
0 to 125 |
The maximum number of Leave Word Calling (LWC) messages that can be stored by the system for a telephone at a given time. With LWC, internal system users can leave a short pre-programmed message for other internal users. When the message is stored, the Automatic Message Waiting lamp lights on the called telephone. |
Message Waiting Indication for External Calls
Enables or disables a station's ability to receive a message waiting indication when external calls are logged.
Prohibit Bridging Onto Calls with Data Privacy
Valid Entry |
Usage |
|---|---|
y |
Prohibits calls from getting bridged by any party, including Service Observing, Intrusion, Verify, and Bridging. |
n |
Allows calls to be bridged. |
Stations With System-wide Retrieval Permission (enter extension)
The server running Communication Manager refers to extensions with system-wide retrieval permission as super-retrievers
.
Valid Entry |
Usage |
|---|---|
Assigned extension |
Up to ten telephone extension numbers that have permission to retrieve LWC Messages or External Call Log records for all other telephones. A VDN extension is disallowed. |
attd |
All attendants have retrieval permission. |
Note:
An extension must be removed from this list before the station can be removed from the system.
