Avaya Aura® Communication Manager Screen Reference

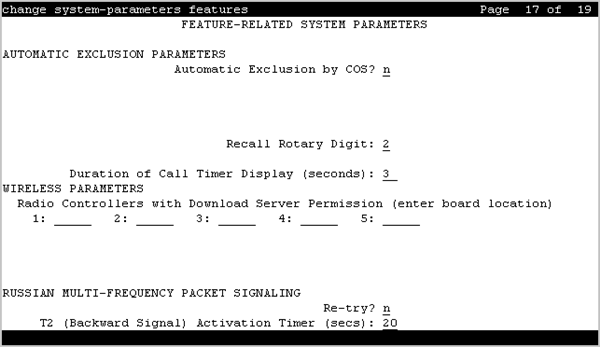

Feature-related system parameters: page 17
AUTOMATIC EXCLUSION PARAMETERS
Automatic Exclusion by COS
Valid Entry |
Usage |
|---|---|
y |
Enables automatic exclusion by a class of service when a user goes off-hook on a station with an assigned Exclusion button. This works only for stations on the local server running Communication Manager. |
n |
Exclusion operates normally. |
Automatic Exclusion Coverage/Hold
Available only when Automatic Exclusion by COS is enabled. This field is applied only for "DND/SAC/Goto Cover" in Coverage path. This field is not applied for Bridge Call Appearance.
Valid Entry |
Usage |
|---|---|
y |
The principal can bridge onto the call by pressing the appropriate bridged appearance button. And, if the coverage point places the exclusion call on hold, the principal can retrieve the call. |
n |
If a coverage point has answered a call and there is active exclusion on the call, the principal cannot bridge onto the call. And, if the coverage point places the exclusion call on hold, the principal cannot retrieve the call. |
Automatic Exclusion with Whisper Page
Available only Automatic Exclusion by COS is enabled.
Valid Entry |
Usage |
|---|---|
y |
The whisper page goes through to an excluded call. |
n |
The whisper page is denied when a station attempts to whisper page to a station that is on an excluded call. |
Duration of Call Timer Display
Valid Entry |
Usage |
|---|---|
3 to 30 |
The length of time in 3 second increments that the call information remains on display after the call is terminated. |
Password to Change COR by FAC
If this field contains a value, a password option is required. Accepts from four to eight digits.
Available only if Change COR by FAC is enabled for the system.
Recall Rotary Digit
Valid Entry |
Usage |
|---|---|
0 to 9 |
The digit used for rotary telephones to receive recall dial tone. Dialing this digit simulates switch-hook flash so that users of rotary telephones can use features such as conference and transfer. The telephone must also be administered to use the recall rotary. This should be a number that is not the first digit in normal dialing patterns. |
IP PARAMETERS
Direct IP-IP Audio Connections
Use this field to enable direct audio connections between IP endpoints. Direct audio connections save bandwidth resources and improve the sound quality of voice over IP transmissions.
Note:
This field has no impact on a SIP station (OPS) on shuffling. For SIP stations, this field is controlled by the "Direct IP-IP Audio Connections" field in the Signaling group form.
RUSSIAN MULTI-FREQUENCY PACKET SIGNALING
Re-try
Enables or disables the resending of address information on outgoing Russian MFP trunks. Specifically, the server running Communication Manager resends Russian MFP calling party number and dialed number information to the local telephone company central office (CO). The server resends the information only once over another outgoing trunk port of the same trunk group if Communication Manager receives a message that the information was received incorrectly by the CO. The switch also sends Russian MFP information over another trunk port if Communication Manager does not receive a timely response for the information.
T2 (Backward Signal) Activation Timer (secs)
Valid Entry |
Usage |
|---|---|
5 to 20 |
The number of seconds Communication Manager waits to receive confirmation after sending calling party number and dialed number information on outgoing Russian MFP trunks. |
