Avaya Aura® Communication Manager Screen Reference
Terminating Extension Group
Defines a Terminating Extension Group (TEG). Any telephone can be assigned as a TEG member; however, only a multi-appearance telephone can be assigned a TEG button with associated status lamp. The TEG button allows the telephone user to select a TEG call appearance for answering or for bridging onto an existing call.
The TEG members are assigned on an extension number basis. Call reception restrictions applicable to the group are specified by the group class of restriction (COR). The group COR takes precedence over an individual member’s COR. The members could all be termination restricted but still receive calls if the group is not restricted.
An extension number can be assigned to more than one TEG but can have only one appearance of each group.

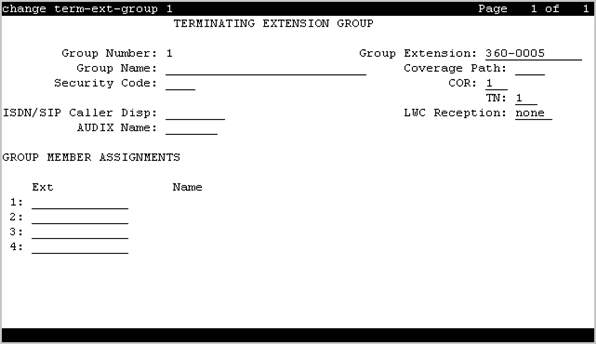

Example command: change term-ext-group n, where n is the assigned group number.
AUDIX Name
The name of the AUDIX machine. Must be the same name as the IP Node name and administered after the IP Node is configured.
COR
Valid Entry |
Usage |
|---|---|
0 to 995 |
The class of restriction (COR) number that reflects the required restrictions. |
Coverage Path
The call coverage path number for this group. A TEG cannot serve as a coverage point; however, calls to a TEG can redirect to coverage.
Valid Entry |
Usage |
|---|---|
digits |
Path number. For the maximum allowed entry, see Avaya Aura® Communication Manager System Capacities Table. |
t1 to t999 |
Time of day table |
blank |
Not administered |
Group Extension
The extension of the terminating extension group. The extension can consist of one to seven digits and cannot be a Vector Directory Number (VDN). This field cannot be left blank.
Group Name
The name used to identify the terminating extension group.
Group Number
Displays the terminating extension group number.
ISDN Caller Disp
Specifies whether the TEG group name or member name (member of TEG where call terminated) is sent to the originating user. Required if ISDN-PRI or ISDN-BRI Trunks are enabled for the system.
Valid Entry |
Usage |
|---|---|
grp-name |
TEG group name is sent. |
mbr-name |
Member name is sent. |
blank |
Not administered. |
LWC Reception
Use this field to specify the location where the system must store the LWC messages.
Valid entry |
Usage |
|---|---|
spe |
Use this option to store the LWC messages on Switch Processor Element (SPE). |
none |
Use this option if you do not want to store the LWC messages. |
audix |
Use this option to store the LWC messages on the voice messaging system. |
Security Code
Use this field to enter the four-digit station security code for the Demand Print messages feature.
TN
Use this field to specify a tenant number. You can enter a value from 1 to 250.
GROUP MEMBER ASSIGNMENTS
Ext
The extension number of one to seven digits assigned to a group number. The extension cannot be a Vector Directory Number (VDN).
Name
Displays the name assigned to the group number.
