Avaya Aura® Communication Manager Screen Reference

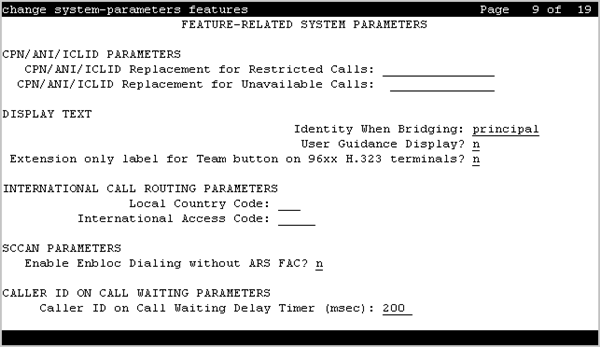

Feature-related system parameters: page 9
CPN/ANI/ICLID PARAMETERS
CPN/ANI/ICLID Replacement for Restricted Calls
Use this field to specify a text string to replace the restricted numbers on the telephone display. You can enter up to 15 characters.
Note:
This field does not apply to SIP telephones.
CPN/ANI/ICLID Replacement for Unavailable Calls
Use this field to specify a text string to replace the unavailable numbers on the telephone display. You can enter up to 15 characters.
Note:
This field does not apply to SIP telephones.
DISPLAY TEXT
Extension only label for Team button on 96xx H.323 terminals
Available only if the Team Btn Display Name for the Class of Restriction is enabled.
Valid entries |
Usage |
|---|---|
y |
For 96xx H.323 telephones, displays the station extension without the team button label. 96xx H323 firmware version 2.0 or greater is recommended as it provides a special icon for team buttons. This field does not impact label customizations. |
n |
For 96xx H.323 telephones, displays the station extension with the team button label. |
Identity When Bridging
Determines whether the telephone display shows the identity of the extension that the bridged appearance represents, or the identity of the physical telephone that the bridged appearance button is on. This applies when the bridged appearance is the caller, and when it is the answering party.
Note:
When you choose the station option, you must update the Public/Unknown Numbering Format with the Extension Codes of the stations that display the caller's or answering party's assigned identification.
Valid Entry |
Usage |
|---|---|
principal |
The extension that the bridged appearance button points to. This is the default. |
station |
The physical telephone that the bridged appearance button is on. |
User Guidance Display
If enabled, the telephone display shows user guidance messages. This field is disabled by default.
INTERNATIONAL CALL ROUTING PARAMETERS
Local Country Code
A valid PSTN E.164 country code. For example, an SBS node in the United States uses a code of 1. For a list of country codes, see the International Telecommunications Union List of ITU-T Recommendation E.164 Assigned Country Codes. Accepts up to three digits.
International Access Code
The access code required by the PSTN to route calls out of the country. This code is included with the telephone number received from the SBS terminating node if the Local Country Codes of the originating and terminating nodes are different. For example, an SBS node in the United States uses an access code of 011. Accepts up to five digits.
Note:
Once administered, this field cannot be cleared until all trunk groups administered for SBS signaling have been removed. If the international call routing parameters are not administered for the system and SBS is enabled for the trunk, a warning is displayed: Must set INTERNATIONAL CALL ROUTING parameters on system-parameters features.
SCCAN PARAMETERS
Enable Enbloc Dialing without ARS FAC
If the Enable Enbloc Dialing without ARS FAC field is enabled, Communication Manager inserts the ARS access code, when a dialed digit string has:
Minimum Digit Length or more digits, and is sent from the telephone to Communication Manager in a single message
a matching ARS entry
If the dialed digit string does not meet above points, the digit string is used as it is without prepending the ARS access code. The call is passed to ARS for digit analysis. By default, the Enable Enbloc Dialing without ARS FAC field is disabled.
Minimum Digit Length
Available only if Enbloc Dialing without an ARS FAC is enabled.
Valid Entry |
Usage |
|---|---|
1 to 20 |
The number of digits before Enbloc Calling Treatment is activated. Default is extension length plus 1. |
CALLER ID ON CALL WAITING PARAMETERS
Caller ID on Call Waiting Delay Timer (msec)
Valid Entry |
Usage |
|---|---|
5 to 1275 |
The required delay in 5-millisecond intervals. Default is 200. |
