Avaya Aura® Communication Manager Screen Reference
Uniform Dial Plan Table
The UDP provides a common dial plan length — or a combination of extension lengths — that can be shared among a group of Avaya servers. Additionally, UDP can be used alone to provide uniform dialing between two or more private switching systems without ETN, DCS, or Main/Satellite/Tributary configurations.
Available only if Uniform Dialing Plan is enabled for the system.

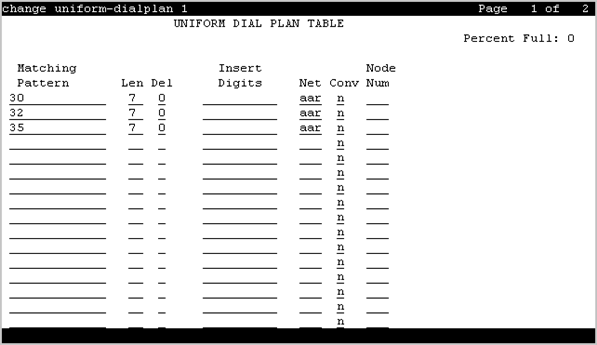

Example command: change uniform-dialplan n, where n is the uniform dial plan length.
Conv
Enables or disables additional digit conversion.
Del
Valid Entry |
Usage |
|---|---|
0 to 9 |
The number of digits to delete before routing the call. This number must be less than or equal to the number of user dialed digits the system collects to match to the matching pattern. |
Insert Digits
Use this field to specify the digits or the number of digits of the location prefix that Communication Manager inserts in the dialed string before routing a call.
Valid entry |
Usage |
|---|---|
0 to 9 |
The digits that replace the deleted portion of the dialed number. The deleted portion is the number of digits that Communication Manager deletes specified in the Del field. You can enter up to 10 digits. Leave the field blank to delete the digits specified in the Del field. |
Lx |
The variable x is a number from 1 to 11 and represents the number of leading digits of the administered location prefix. Communication Manager prepends the digits of the location prefix to the dialed string. The value of x must be less than the value of the Prefix field on the Location screen. |
Len
Valid Entry |
Usage |
|---|---|
1 to 18 |
The number of user-dialed digits the system collects to match to this Matching Pattern. This number must be greater than or equal to the Matching Pattern value. The value 2 can be used only when Insert Digits contains an Lx value. |
Matching Pattern
Communication Manager matches the value of the Matching Pattern field to the dialed numbers.
Valid entries |
Usage |
|---|---|
0 to 9 |
Communication Manager matches the value with the dialed numbers. You can enter up to 16 digits. |
blank |
Leave the field blank if you do not want to specify a pattern. |
Net
Valid Entry |
Usage |
|---|---|
aar ars enp ext |
The server or switch network used to analyze the converted number. The converted digit-string is routed either as an extension number or through its converted AAR address, its converted ARS address, or its ENP node number. For enp, the ENP node number must be administered, digit conversion must be disabled, and the Insert Digits must not be administered. |
Node Num
Valid Entry |
Usage |
|---|---|
1 to 999 |
The ENP (Extension Number Portability) Node Number. |
Percent Full
Displays the percentage (0 to 100) of the memory resources allocated for the uniform dial plan data that are currently being used. For details on the system memory resources, see Avaya Aura® Communication Manager System Capacities Table.
