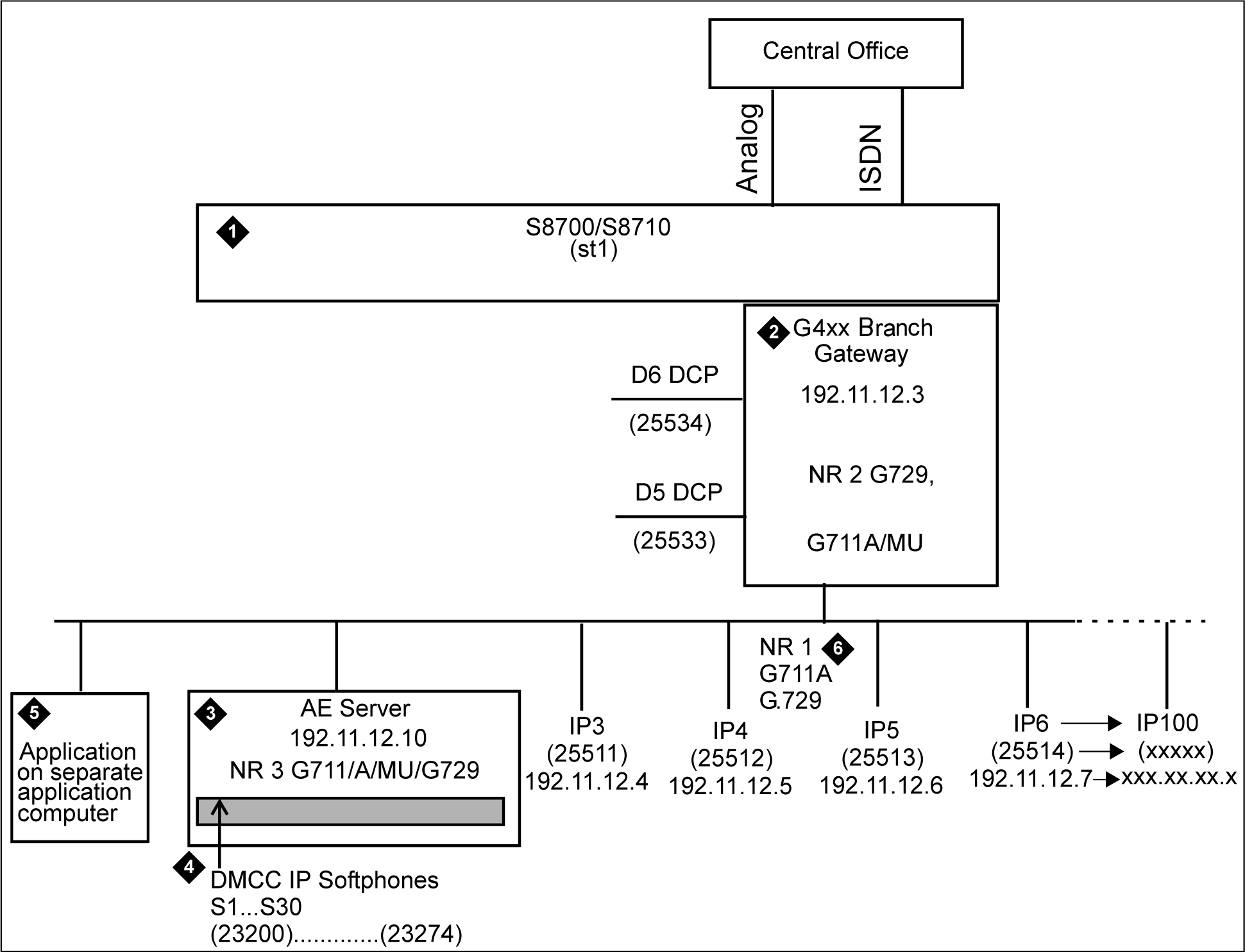

To get an idea of how to administer Communication Manager to support this sample configuration, refer to the sample Communication Manager administration screens Figure : 1.

1. Communication Manager - G700 media gateway

2. AE Server

3. One or more DMCC softphones

4. DMCC application on separate computer

5. Network Region 1 (includes IP phones; supports code set, G.711A/MU and G.729)

6. Network Region 2 (Includes G700 media gateway; supports codec sets G.711A/MU and G.729)

7. Network Region 3 (Includes Communication Manager API softphones; supports G.711A/MU and G.729)
