The speed call list keys are configured as soft keys on certain station types, or as programmable feature keys. Note that digital and UNIStim stations with soft keys and buttons have a soft key reserved for speed call (23) but may have speed call programmed at other locations. A station may have access up to three available speed call list, although this is less common than having a single list.

Device Adapter endpoint provisioning on the Communication Manager and System Manager does not assign the capability to key 23. Instead, the provisioning indicates the desired feature mnemonic, and the Device Adapter maps the feature mnemonic used for the soft key to have the soft key enabled.

The mnemonics shown include a parameter x. This is the number 1, 2, or 3 of the Abbreviated list configured in the station. On the other hand, the list number stored as the station’s “abbreviated list 1” will be a numeric value as defined in the Communication Manager list creation and can be in triple digits.

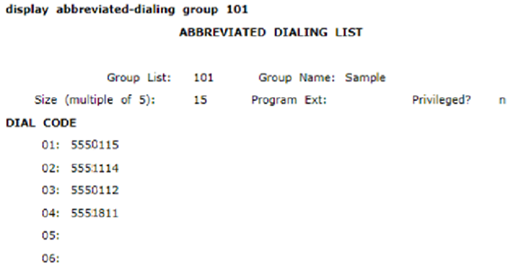

For example, the following image shows a group list 101:

It can be assigned as abbreviated dial list 1 on a station:

Therefore, in the mnemonic use 1, and not 101.
