Configuring Speed Call Controller for Feature Keys

Last Updated : Jun 06, 2019 |
Prolog information
Metadata
Keywords:

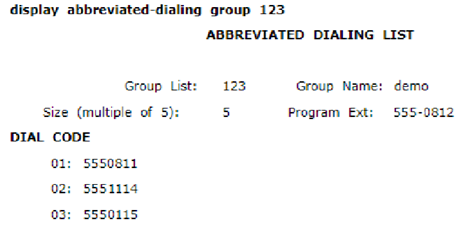

  1. Define the Abbreviated Dialing group list to be used.
    ADDITIONAL INFORMATION:
    For the procedure to create the list, see Abbreviated Dialing in the Avaya Aura® Communication Manager Feature Description and Implementation guide.
  2. Specify the phone extension as Program Ext in the Abbreviated Dialing group list. Note that only one dedicated extension can program a group list.
    ADDITIONAL INFORMATION:
  3. Define the Abbreviated Dial Prgm_Group_List FAC.
    ADDITIONAL INFORMATION:
  4. Do the following, while creating or changing the station:
    1. Set the Abbreviated Dialing list as the station’s abbreviated dialing list 1, 2, or 3.
      ADDITIONAL INFORMATION:
      For the procedure to allow a station to use the list, see Assigning telephones for group lists in Chapter 4: Abbreviated Dialing, in the Avaya Aura® Communication Manager Feature Description and Implementation guide.
    2. Add the feature mnemonic SCBbbMmCx or SCBbbCx, where:
      ADDITIONAL INFORMATION:
      • bb is the button (entered as two digits; 08 and not 8).
      • Mm is the expansion module number. This is not needed when the button is on the station, which is why the SCBbbCx mnemonic exists.
      • C indicates a controller.
      • x is the abbreviated dial list number (1-3) on the station.
      Note:
      This user can both change and use the list. Only one controller can be defined per group abbreviated dial list.
    3. Add an autodial button feature.
