Setting up Chime Paging over Loudspeakers

Last Updated : Oct 02, 2023 |

Procedure

  1. Enter change paging loudspeaker.

    The system displays the Loudspeaker Paging screen (the figure).

    In this example, you set up chime paging for a clothing store with three zones. You allow users to page all three zones at once, and you assign a Class of Restriction (COR) of 1 to all zones.

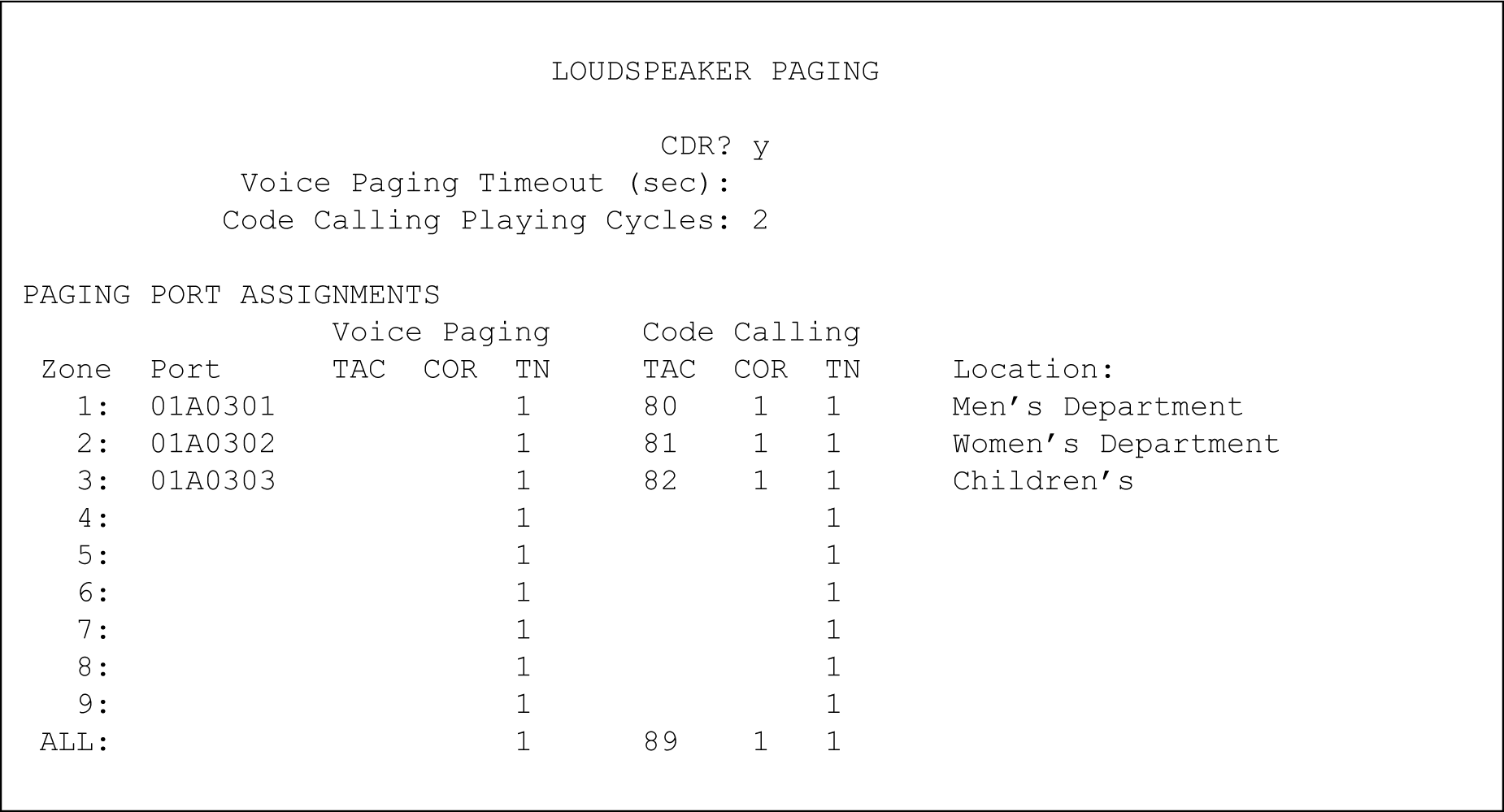

    Figure : 1. Loudspeaker Paging screen
  2. In the Code Calling Playing Cycles field, type the number of times that a chime code plays when someone places a page.
  3. In the Port field for Zone 1, type the port number of the auxiliary trunk media module that is assigned to this zone.

    In this example, the port number is 01A0301.

  4. In the Code Calling - TAC field, type the Trunk Access Code (TAC) users dial to page this zone.

    You cannot assign the same trunk access code to more than one zone.

    In this example, the trunk access code is 80.

  5. In the Code Calling - COR field, type the COR number that is assigned to this zone. You can assign different classes of restriction to different zones

    In this example, the COR is 1.

  6. In the Zone 1 row of the Location field, type a descriptive name for the zone.

    Use this name to help you remember the corresponding physical location.

    In this example, the location is Men’s Department.

  7. Repeat steps 4 through 6 for zones 2 and 3.
  8. In the ALL row of the Code Calling - TAC field, type 89 and 1 in the Code Calling - COR field.

    When you complete this row, you allow users to page all zones at once. You do not have to assign a port to this row.

  9. Select Enter to save your changes.
